TELEMETRY

The Phoenix S.A.V.E™ SYSTEM

The Phoenix S.A.V.E™ Controller

Remote Monitoring & Jobsite Control

Complete Control Over Jobsite Systems and Operations
To optimize system performance, including contaminant extraction and destruction efficiency, RSI has developed a fully automated, user friendly, computer control system for its modular remediation systems. The Phoenix S.A.V.E.™ Controller maximizes vapor flow from the extraction wells and minimizes alternate fuel consumption simultaneously. The electronic controller senses any deviation from the stoichiometric air-to-fuel (A/F) ratio to optimize contaminant destruction and meet stringent air emissions standards. With the ability to optimize system operation to meet Air Quality Control standards, the patented computerized control system is cutting-edge technology.

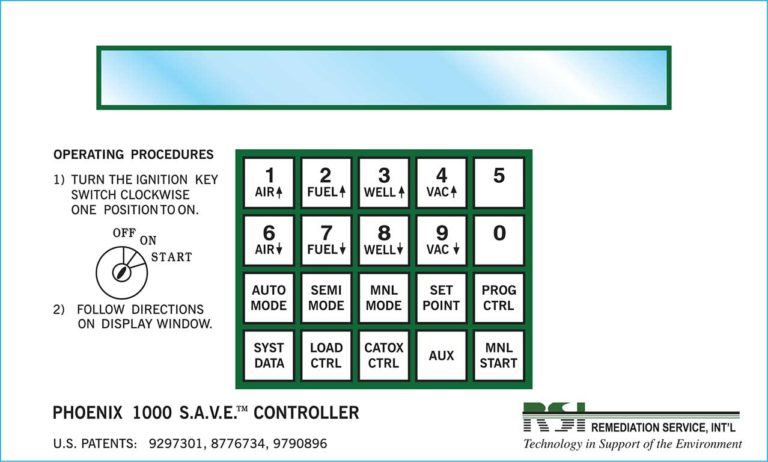

PHOENIX 1000 CONTROLLER OVERLAY

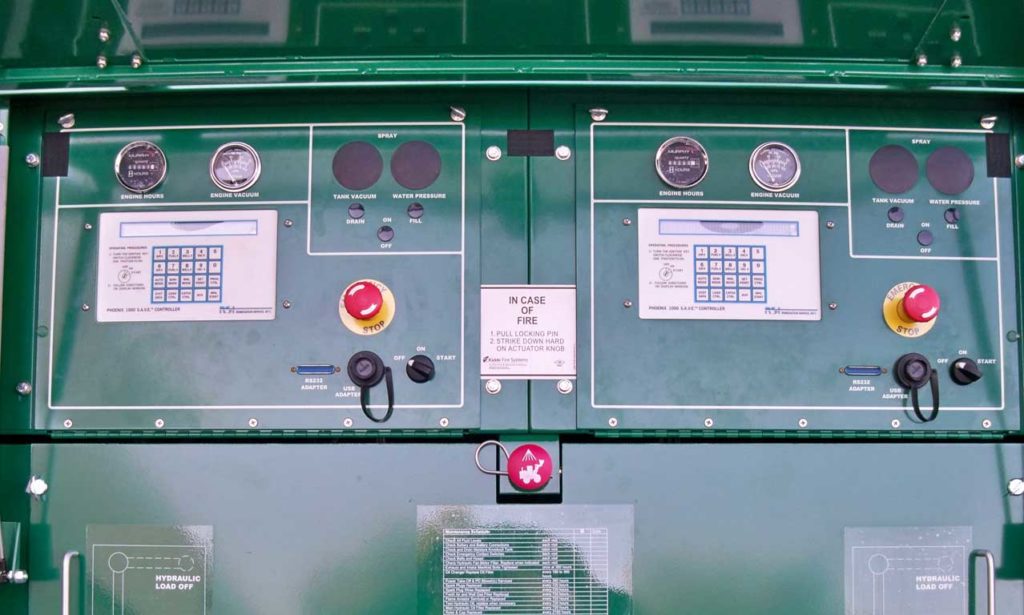

PHOENIX 1000 CONTROL PANEL IN UNIT
Phoenix 1000 Controller and PHHost Operations Software
Maintaining optimal A/F ratio is challenging with variations in site conditions, such as fluctuating hydrocarbon, oxygen or carbon dioxide concentrations. Competing systems require constant operator input to adjust to changing conditions. The Phoenix S.A.V.E.™ Controller can handle virtually any change in site conditions, from a slug of free product to a temporary loss of supplemental fuel. In the event of system shutdown based on the automatic detection of an incorrect operating condition, the computer can be pre-programmed to restart after verifying that all operating conditions are correct. The Phoenix S.A.V.E.™ Controller will not start the engine when a safety “kill” switch has been activated, for instance, due to high engine temperature, low oil pressure or high water level in the moisture knockout tank. In the event of a system shut down, the optional telemetry system can report unit status to the technician on call.
The key to our success is that the catalytic module increases the total S.A.V.E.™ system capacity, with two off-gas treatment units (ICE and catalytic oxidation) operating simultaneously, in parallel. Our catalytic module requires no outside energy source as all required power is derived from the waste energy of the ICE. No one offers a better treatment cost per cubic foot treated than RSI’s patented remediation.
RSI’s breakthrough Phoenix S.A.V.E.™ System is proven cost effective, offering increased runtime, decreased maintenance visits, and reduced cleanup costs. Truly an innovative environmental solution.

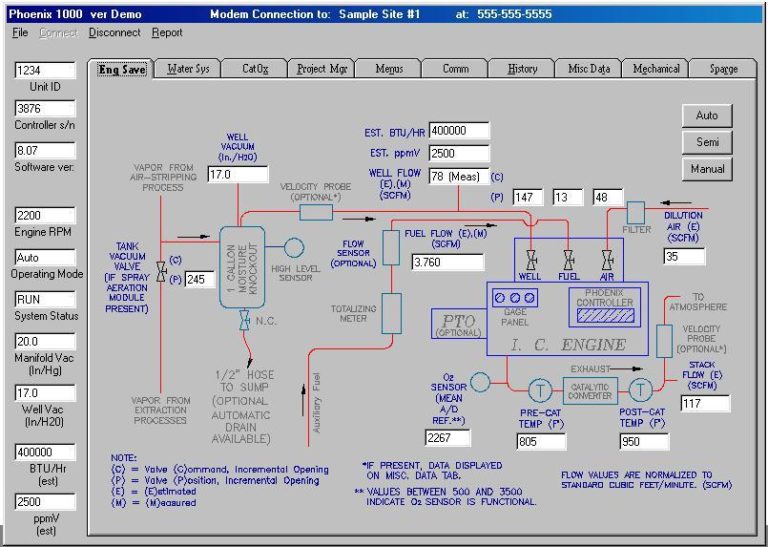

PHOENIX 1000 SOFTWARE

The Project Manager

The optional “Project Manager” software module allows for control of the “Smart Valve Manifold System”. This unique system optimizes BTUs extracted from the contamination source by purposely rotating from well to well and determining the most efficient combination of wells to extract from. This will reduce energy cost from alternate fuel and increase contaminant removal rates. The system can be manually overridden for operator control, both on and off-site.

The Phoenix Data-Logger

Monitoring includes data reporting on engine vital signs and system operation. Reports are generated automatically or manually at the discretion of the operator. Data is stored at programmable intervals for future retrieval, and it can be downloaded via direct or modem connection to the PC.

Specialty & Custom Engineering Solutions

From consultation to systems design, RSI industry specialists team up with our clients to develop and integrate solutions to overcome industry projects and challenges. If our equipment doesn’t fit your project’s requirements, we will design, engineer, and manufacture a custom system for you. Our specialists work WITH you to achieve your desired results.
